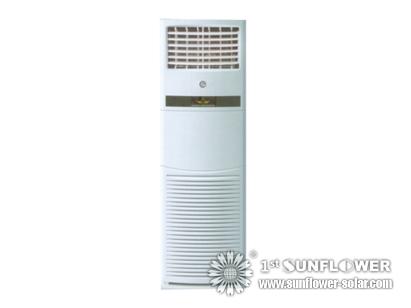

Floor Standing Solar Air Conditioner
Floor Standing Solar Air Conditioner use solar energy to work which can save electric energy, easy installation and maintenance.
User Guide
Download Center

Why Hybrid solar air-conditioner can save electricity?

Here are the reasons:
Firstly, it absorbs solar energy to heat the inside medium by using a solar collector. Freon from the compressor goes through the copper coil inside the collector and undertakes a heat exchange. Freon exchange heat with the medium inside the solar collector then go through a cycle inside the system for cooling and heating.

Secondly, it adopts a highly efficient heat-exchange system. The use of the internal thread pipe, hydrophilic aluminum fin and the optimal heat exchange system reduce energy loss, improve the overall efficiency and effectively ensure the performance. Therefore, hybrid solar air conditioner is more convenient and energy-saving than regular air conditioner.

Comparing to Current Products
1. Conventional air conditioner consumes too much, users have to pay a heavy electricity bill.
2. Photovoltaic (PV) system costs a large amount of money to build up.
3. Thermally driven absorption cooling is also very costly, and its cooling capacity is not big enough.



Tips on electricity saving of air conditioners: According to China National Management Method of Energy Efficiency, EER refers to the proportion between cooling capacity and power input, which is the only data used to value the energy-saving of air conditioners. The bigger it is the electricity it saves. If two AC with the same power consumption, the one with bigger capacity is better on electricity saving.

Performance Characteristics

High efficiently,energy-saving,comfortable and money saving,exceeding national first grade energy standard.
Durable and long-lived,smooth running.Low-loaded operation of the compressor to extend its duration.
Healthy and comfortable,constant temperature and keeping air conditioner disease away.
It is not frequency conversion air conditioner but superior to it because conversion type begins to save energy when the indoor temperature reaches the set value,while the hybrid solar air-conditioner runs in the optimal state immediately after starting and it achieves the sanme effects of traditional air conditioner with less power consumption.
Super luxurious appearance decorates your home.Indoor panel adopts aluminum alloy and wire drawing metal color board to make your house more sparkling.
Automatic open and close dustproof air outlet.
Easy installation,same as the traditional air conditioner.
With strong adaptability,Chuanglan hybrid solar air conditioner can run at super low and high temperature from -7°C to 53°C.
Exceeding the national standards and applicable to all kinds of environment.

High Performance Japanese Brand Compressor

Durable and long-lived, smooth running. Low-loaded operation of the compressor to extend its duration.



Four-fold Heat Exchanger
As one of the main components of air conditioner, Chuanglan hybrid solar air conditioner adopts four-fold heat exchanger (take Supreme Silent as an example) heat exchanger effective area is increase by 20-40% than V-shape and flat heat exchangers, thus the cooling and heating effect are improved greatly.



High-quality Internal Thread Copper Pipe
Compared with normal copper pipe, the heat exchanging area of internal thread cooper pipe is significantly enlarged so does the exchange effect. Meanwhile, it can resist frosting and increase its starting ability at low temperature.

Hydrophilic aluminum foil to prevent the appearing of water bridge, thus to ensure the performance of heat exchange.







Model No.     TKF(R)-60LW TKF(R)-72LW TKF(R)-100LW TKF(R)-120LW TKF(R)-140LW
Power Supply:220-240VAC, 1PH, 50/60Hz
Performance
Capacity Cooling Btu/h 20000 24000 36000 41000 48000
W 6000 7200 10000 12000 14000
Heating Btu/h 22000+1700 27000+1700 40000+1700 46000+1700 55000+1700
W 6600+500 7900+500 12000+500 14000+500 16000+500
Noise Indoor dB(A) ≤47 ≤51 ≤51 ≤53 ≤53
Outdoor dB(A) ≤56 ≤58 ≤58 ≤60 ≤60
Air Circulation   m³/h 800 1250 1700 1800 1900
Suitable Area   25~42 30~48 42~67 50~80 58~93
EER

W/W 3.88 3.82 3.87 3.96 3.87
Btu/h/w 13.24 13.03 13.2 13.51 13.2
Power Consumption
Power Input Cooling W 1350~1560 1700~1900 2400~2640 2900~3150 3500~3740
Heating W 1350~1590+500 1700~1950+500 2470~2650+500 2900~3180+500 3500~3760+500
Rated Current Cooling A 6.14~7.09 7.73~8.64 10.91~11.95 13.18~14.32 15.91~17
Heating A 6.14~7.23+2.2 7.73~8.66+2.2 11.23~12.05+2.2 13.18~14.45+2.2 15.91~17.09+22
Vacuum Tube Diameter*Length*Pcs 47mm*620mm*11 47mm*620mm*11 47mm*700mm*13 47mm*1200mm*13 47mm*1200mm*13
Dimensions
Indoor Unit Net mm 490*280*1730 550*300*1790 550*300*1790 550*390*1790 550*390*1790
Shipping mm 580*390*1790 630*380*1850 630*380*1850 630*470*1850 630*470*1850
Outdoor Unit Net mm 850*300*755 940*300*755 950*355*835 950*355*1255 950*360*1255
Shipping mm 950*400*770 990*400*770 1140*460*910 1140*460*1340 1140*460*1340
Water Tank Shipping mm 980*400*370 980*400*370 1120*400*400 1120*400*400 1120*400*400
Vacuum Tube Shipping mm 1270*280*210 1270*280*210
Weight
Indoor Unit Net/Gross kg 39/42 43/47 44/48 51/55 52/56
Outdoor Unit Net/Gross kg 50/52 55/58 73/76 95/100 97/102
Solar Collector Net/Gross kg 16/17 16/17 18/21 23/26 23/26
Loading Qty in 20feet sets 33 31 27 18 18
40HQ sets 82 76 66 45 45



Flat plate type solar collector available, which is easier for installation.Aboved Red Numbers means the electrical heater is on.

Parameters in the form are messured in the rated working state acording to GB/T7725-2004. Changes may appear according to real working state.
Parameters may change due to the product improvement, please refer to the products nameplate or contact us for the most update info.

Unit conversion

1Ton  (12,000 BTU)
1.5 Ton
(18,000 BTU)
2 Ton
(24,000 BTU)
2.5 Ton
(30,000 BTU)
3 Ton
(36,000 BTU)
3.5 Ton
(42,000 BTU)
4 Ton
(48,000 BTU)
5 Ton
(60,000 BTU)
1Ton=3024 kcal/h = 3.517KW
1Btu/h = 0.293W
