Suitable for heating water, Swimming pool, Floor etc - even in winter!

Installing solar hot water will not only save your money, but also reduce your household's impact on the environment. At Sunflower, we pride ourselves on providing the highest quality solar hot water systems, leading industry warranties and exceptional after sales service.

Evacuated tube solar collectors are fast becoming the preferred option for residential, business and commercial hot water, due to their high efficiency, lightweight and low maintenance construction.

                                                                                                      200L / 53GAL  ~ 300L / 80GAL

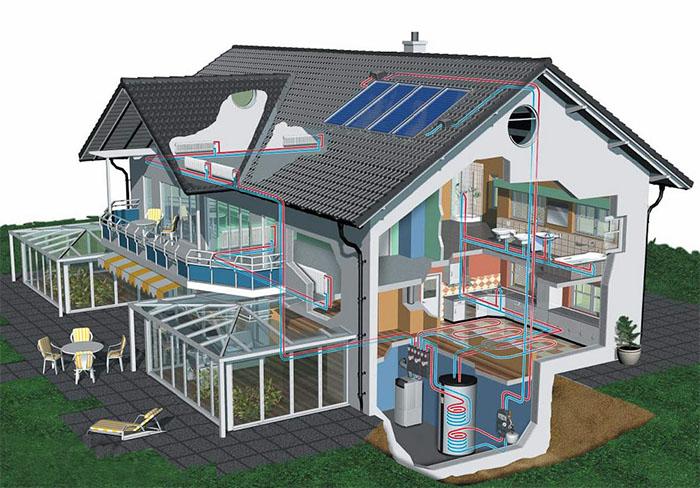

#3 Solar hot water system for Bath + Kitchen + Floor heating



We offer a bespoke service to help reduce carbon emissions. More capacity details:


Specification of each part:

1) Solar collector: Heat pipes:￠58mm*1800mm*10, Collector Box: aluminum alloy ,Copper Collector: 22mm,Thickness 1mm,Heat Preservation Layer: Rock Wool, Frame:aluminum alloy
2) Pressurized Tank: With single coil copper pipe (Φ16mm, thickness 1mm) ,Bottom Heat exchange square: 0.6/0.7/0.8m²,Inner tank: Stainless steel 1.2 mm,Outer tank: galvanized sheet 0.5mm, Polyurethane foam layer: 4cm/5cm,Inlet/Outlet: NPT3/4”,Immersion heater: 1.5KW-2KW
3) Integrated Workstation :Circulation Pump: Power:130W/120W/60W,Highest head:7/6/4 m,Max. Capacity:50/40/25 L/min,Switch Valve, Safety valve,One- direction Valve, Flow meter, Pressure meter,Overflow Valve, etc.
4) Expansion vessel: Capacity: 5Liter or more, optional, Max pressure: 10 bar, Connection: 3/4” G
5) Pipe fittings include Air Bleeder, Mounting Strip, Filter tap, Connector between two collectors.

Note: The system is designed on the basis of the 3.6W/M2/h insolation. It is average value. If the insolation in your area is much higher or low, we can designed the one for you alone.
