COMPONENTS |
TECHNICAL PARAMETERS |
REMARK |
|

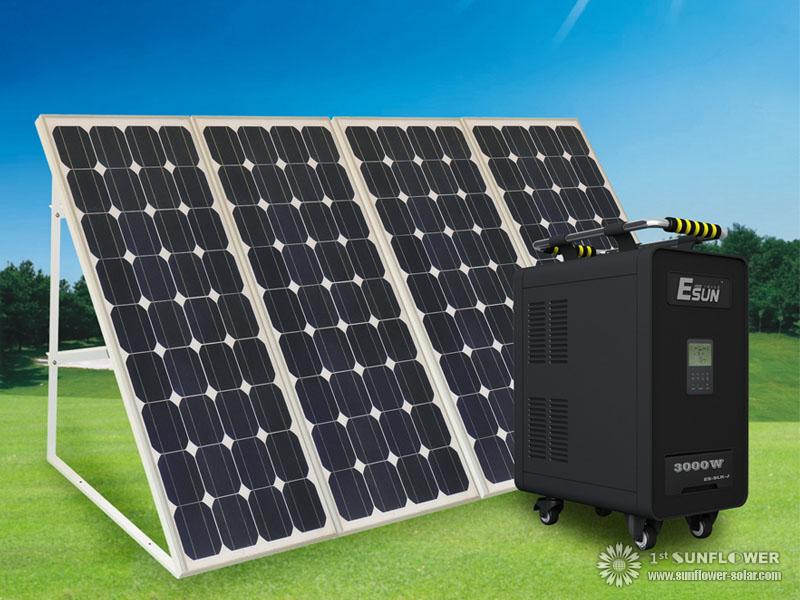

SOLAR PANEL |
Silicon |
Monocrystalline silicon / Polycrystallin silicon |
life span |
20-25
years
|
|
Power |
70W x 5pcs, totally 350 W |
|
Vmp/Imp |
36V、9.7A |
|
Voc/Isc |
39V、10.2A |
LiFePO4 BATTERY
(Maintenance free, deep cycle, also called LFP battery) |
Rated capacity |
Maintenance free LiFePO4 BATTERY, 100AH*8 |
life span |
8-12
years
(2000 times cycle)
|
|
Rated voltage |
24V |
|
Dimension |
326mm*248*284mm |
|
Weight |
25.6kg±5% |
|
NOTE |
Stoked battery is recommeded to be charged every three months (a maximum of six months). Please note: Use the correct voltage, otherwise the battery capacity and life will be affected. |
|
CONFIGURATION |
Controller |
Controller system voltage:DC24V Rated charge/discharge current:30A Rated capacity:720W. Controller feature: |
|
1) PWM & serious connection switch charging |
|
2) overload & short-circuit protection, reverse connecting protection. |
|
3) Charging state adjust |
|
4) Battery capacity setting, improving , direct charging & floating charging |
|
5) Automatic load recovery |
|
6)Automatic voltage recognition ( 12/24V, 24/48V) |
|
7)temperature compensation |
|
8) Exact clock display |
|
9) Light-control or time-control options |
|
10) four buttons to choose and adjust parameters |
|
11) LCD display |
|
Inverter |
Power:2000W;24V DC voltage of the battery is converted to AC220V/50Hz (or AC100V/60HZ) voltage Supply power for AC home appliances.( recommended maximum load is 1600W). |
|
AC Charger |
Input:AC220V/50Hz(or AC100V/60Hz);Output 24V DC;output-current:10A. |
|
Operation Interface |
1.Charging&control mold indicator |
|
2. battery state indicator, |
|
3. Load state indicator |
|
4. Seting state indicator, |
|
5.Load switch state indicator |
|
6. Battery percentage capacity indicator |
|
.7. System working indicator |
|
8.inverter working indicator |
|
9.DC load indicator |
|
11.USB output DC 5V cell-phone charging interface |
|
12. AC110/AC220V output interface |
|
13.Solar panel & AC power charging interface. |
|
14. Switch |
Working-hours
(battery fully charged) |
working with 1600W power appliance: 1hour |
|
working with 1000W power appliance: ≥ 1.5 hours |
|
working with 500W power appliance: ≥ 3hours |
|
working with 200W power appliance: ≥ 7 hours |
|
working with 100W power appliance:≥ 14.5 hours |
charging-hours
(battery empty) |
solar charging |
15hours(Depending on the strength of sunlight) |
|
AC charging |
10hours |
|
Package |
Individually package for Mainframe and solar panel |
