Max Head:140m

Max Immersible depth:40m



APPLICATION AREA:

This project products are mainly used in dry region for irrigation of agricuture.

It can be used for drinking water and living water.

The living codition could be much improved.It also can be used for fountains.



MATERIAL OF PARTS:

Outlet:Stainless steel

Pump body:stainless steel

Motor body:stainless steel

Screw:stainless steel

Bearing:NSK



ACCESSORIES:

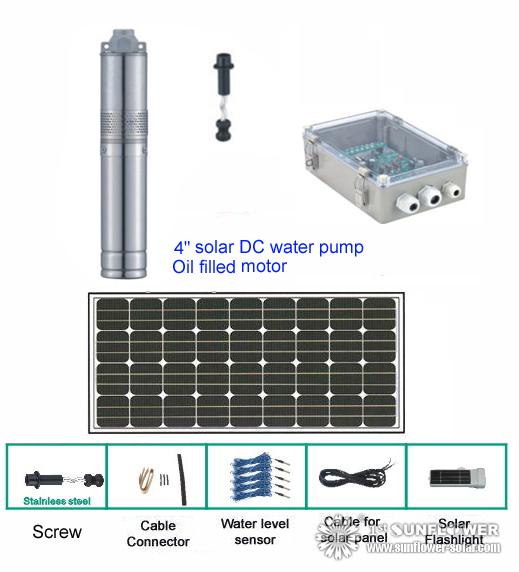

Pump controller, Screw, Cable connector, Water level sensor, Cabel for solar panel.



ADVANCED TECHNOLOGY

1.Application innovation

Compared with the traditional alternating current machine,the efficiency is improved 25% by the permanent magnetism,direct current,brushless,non-sensor motor.



2.Technics innovation

Adopt double plastic package for rotor and stator,

motor insulation≥300MΩ,

the motor security was much improved.



3.Structure innovation

Oil filling,convenient installation and environmental protection.



Pump Performance：


Type	Voltage (v)	Power (w)	Max Flow Rate LPH	Max Head (m)	Outlet Size (in) / (mm)	Diameter (mm)	Controller Model
JS4-2.5-80	48	500	2500	80	1.25" / 32mm	100	MAS3000-48
JS4-2.5-140	110	1000	2500	140	1.25" / 32mm	100	MAS6000C
