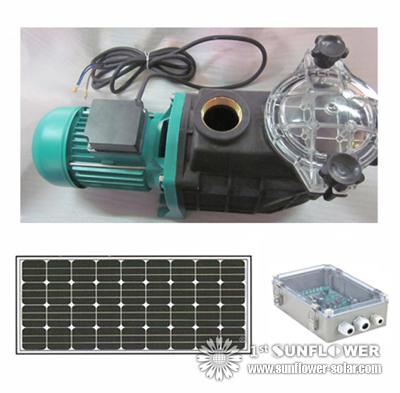

Solar Water Pump for irrigation of agriculture, swimming pool water circulation
  • JP15-14/600 series
This solar pumps are mainly used in dry region for irrigation of agriculture, swimming pool water circulation through a filter system and thermal collectors pond management, irrigation, aquariums. Max head 14m, max flow rate 15 m3/h.
User Guide
Download Center

APPLICATION AREA

This project products are mainly used in dry region for irrigation of agriculture,
swimming pool water circulation through a filter system and thermal collectors pond management,irrigation,aquariums.
It can be used for drinking water and living water use.
The living condition could be much improved.it also can be used for fountains.

1. Application innovation
Compared with the traditional altemating current machine,
The efficiency is improved 25% by the permanent magnetism,
direct current,brushless,onn-sensor motor.

2. Technique innovation
High reliability and life expectancy
Cost-efficient pumping
3 years,manufacturer’s warranty against defects in material and workmansgip

3. Structure innovation
Convenient installation and environmental protection

4. Suction/max.positive inlet lift---3.0M

5. Max.Casing pressure---2.5bar

6. Max.Water temperature ---+60 C

ACCESSORIES:
Pump controller,Cable connector,Water level sensor,Cable for solar panel,Solar flashlight

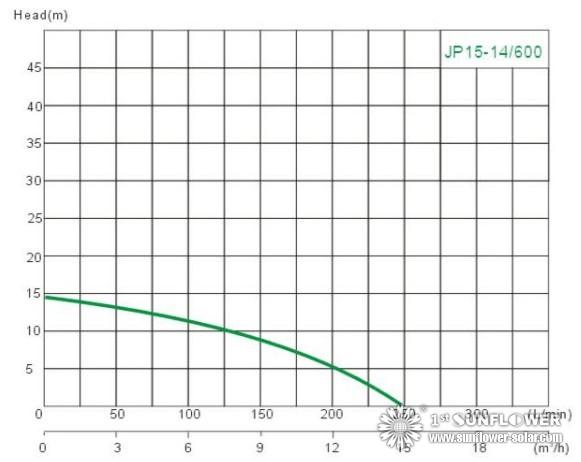

PUMB PERFORMANCE

TYPE VOLTAGE
(V)
POWER
(W)
MAX FLOWRATE
(㎡)
MAX HEAD
(m)
INLET AND OUTLET SIZE
(in)
CONTROLLER MODEL
JP15-14/600 48 600 15 14 1.5" *1.5" MAS6000
