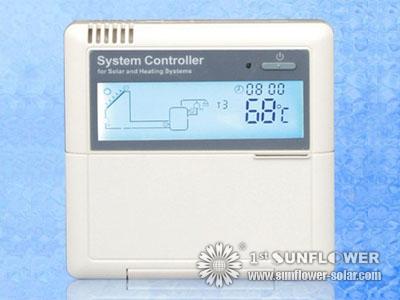

Solarwasser-Systems-Steuerpult SR868C8

Nr.	CODE	FUNKTION	ANMERKUNG
1	THET	TIMING-Heizung
2	Papierlösekorotron	Collector&Tank DeltT Zirkulation
3	EM	Kollektor-Dringlichkeit weg	Neu!
4	CMX	Kollektorabkühlen	Neu!
5	CMN	Schutz der niedrigen Temperatur des Kollektors	Neu!
6	CFR	KollektorFrostschutz
7	REC	Behälter Re-Abkühlen	Neu!
8	CF	Celsius- und Fahrenheit-Übertragung	Neu!
9	SMX	Behälter maximaler Temp
10	DVWG	Anti-legionella	Neu!
11	CIRC	Heißwasser unter Verwendung der Zirkulation
12	BYPR	Überbrückung
13	HND	Manueller Arbeitsmodus
14	DURCHLAUF	Kennworteinstellung	Neu!
15	R-SET	Wiederaufnahmenfabrik
16		Temperaturfrage
17		Manuelle Heizung
18		Gedächtnis

Specification	SR868C8Q	SR868C8
Appearance of controller	120mm×120mm×18mm	120mm×120mm×18mm
Power supply	AC230V±10%	AC230V±10%
Power consumption	< 3W	< 3W
Accuracy of temperature measuring	±2°C	±2°C
Range of collector temperature measuring	Mins 10～220°C	Mins 10～220°C
Range of tank temperature measuring	0～110°C	0～110°C
Suitable power of pump	three pumps, ≤ 600W	three pumps, ≤ 600W
Suitable power of electrical heater	One, power≤ 1500W	One, power≤ 1500W
Inputs	2 x Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC), 3 x NTC10K, B3950 sensor (≤ 135oC) for tank, (PVC cable ≤105oC),	1 x Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC), 2 x NTC10K, B3950 sensor (≤ 135oC) for tank, (PVC cable ≤105oC),
Outputs	3 relays, for circulation pumps or 3-way electromagnetic valve 1 relay for electrical heater	3 relays, for circulation pumps or 3-way electromagnetic valve 1 relay for electrical heater
Ambient temperature	Minus 10～50 °C	Minus 10～50 °C
Water proof grade	IP40	IP40

Language(German-Deutsch)
